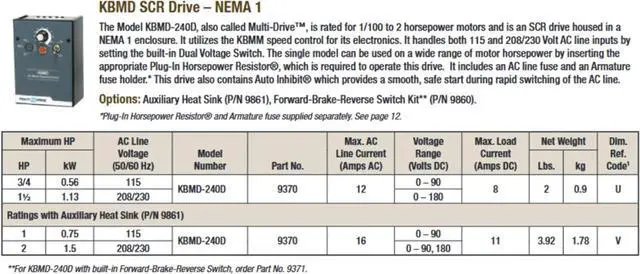

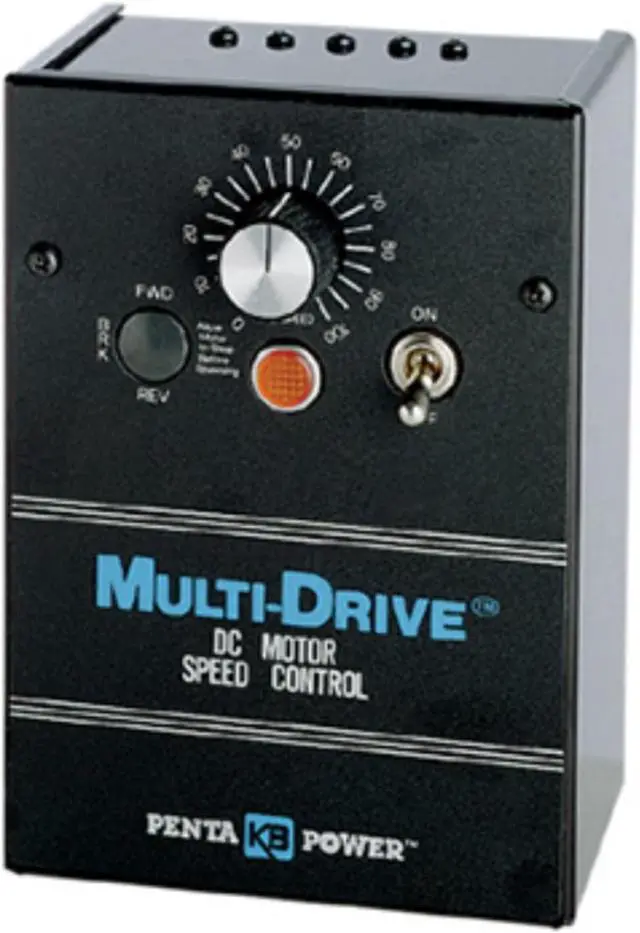

9370, (KBMD-240D) SCR DC Drive 3/4Hp 115AC~90VDC 1.5Hp 230AC~180VDC & 1Hp 115AC~90VDC 2Hp 230AC~180VDC W/Heat Sink NEMA 1
- Horsepower Ratings: - 3/4 HP (115V AC 90V DC) - 1.5 HP (230V AC 180V DC) - 1 HP (115V AC 90V DC) - 2 HP (230V AC 180V DC)
- Input Voltage: 115/230 VAC Output Voltage: 90/180 VDC
- Dual Voltage Switch: Yes (Allows selection between 115V and 230V AC)
- Protection Features: Line Fuse Supplied Resistor and Armature Fuse Required
- Additional Options: - Not Included Forward-Brake-Reverse Switch Kit (Optional) - Not Included Auxiliary Heatsink Available for Increased Rating ( Optional)
+
+
Overview
Specs
Reviews

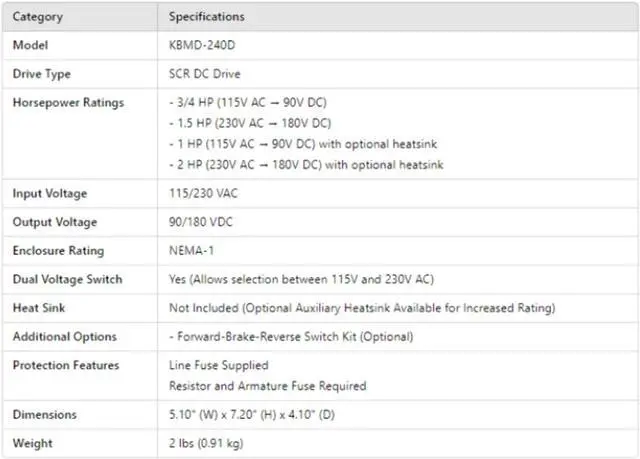

Horsepower Ratings: - 3/4 HP (115V AC 90V DC) - 1.5 HP (230V AC 180V DC) - 1 HP (115V AC 90V DC) - 2 HP (230V AC 180V DC)
Input Voltage: 115/230 VAC Output Voltage: 90/180 VDC
Dual Voltage Switch: Yes (Allows selection between 115V and 230V AC)
Protection Features: Line Fuse Supplied Resistor and Armature Fuse Required
Additional Options: - Not Included Forward-Brake-Reverse Switch Kit (Optional) - Not Included Auxiliary Heatsink Available for Increased Rating ( Optional)
Input Voltage: 115/230 VAC Output Voltage: 90/180 VDC
Dual Voltage Switch: Yes (Allows selection between 115V and 230V AC)
Protection Features: Line Fuse Supplied Resistor and Armature Fuse Required
Additional Options: - Not Included Forward-Brake-Reverse Switch Kit (Optional) - Not Included Auxiliary Heatsink Available for Increased Rating ( Optional)
