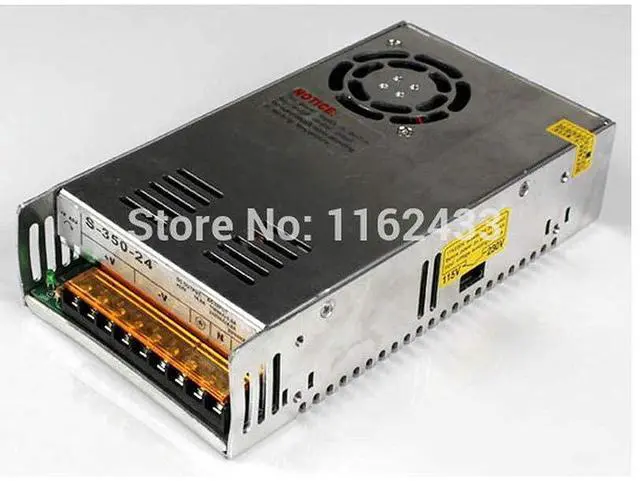

S-350-13.5 350W 13.5VDC 25.8A Single Group Switching Power Supply AC 110V / 220V to DC 13.5V

S-350 series 350W general switching power supplyfinglaiModel number and parametersModel numberS-350-5S-350-7.5S-350-12S-350-13.5S-350-15S-350-24S-350-27S-350-48Related productOrderOrderOrderVisiting...OrderOrderOrderOrderDC output voltage5V7.5V12V13.5V15V24V27V48VOutput voltage error (
Notes:
2)±2%±1%±1%±1%±1%±1%±1%±1%Rated output current50A40A29A25.8A23.2A14.6A13A7.3AOutput current rage0-50A0-40A0-29A0-25.8A0-23.2A0-14.6A0-13A0-7.3AWave and noise (
Notes:
3)75mVp-p75mVp-p75mVp-p75mVp-p75mVp-p75mVp-p75mVp-p75mVp-pInlets tability (
Notes:
4)±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%Load stability (
Notes:
5)±1%±1%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%DC output power250W300W348W348.3W348W350.4W351W350.4WEffciency78%78%83%83%83%84%85%86%Adjustable range for DC voltage4.5-5.6V6-9V10-13.2V12-15V13.5-18V20-26.4V26-32V41-56VfinglaiGeneralModel numberS-350 seriesAC input voltage range85-132VAC/176-264VAC, selected by switch, 47-63Hz; 248-370VDCInput current6.5A/115V, 4A/230VAC inrush currentCold-start current: 25A/115V, 50A/230VLeakage current3.5mA/240VAC maxOverload proctection105%-150% Type:Foldback current limiting Rest:auto-recoveryOver-voltage protection5.75-6.75V, 9.4-10.9V, 13.8-16.2V, 15.5-18.2V, 18-21V, 27.6-32.4V, 33.7-39.2V, 57.6-67.2VTemperature coefficient±0.03%/°C (0-50°C)Setup rise hold up time200ms, 100ms, 20msVibration10-500HZ,2G 10min/1cycle, Periodfor 60min, Each axesDielectric strength1.5KVac, 50/60 Hz for 1 min between input and output
1.5KVac, 50/60 Hz for 1 min between input and enclosure
0.5KVac, 50/60 Hz for 1 min between output and enclosureIsolation resistance100M min. at 500 VDCWorking temperature humidity-10°C-60°C (Refer to output characteristic figure), 20%-90%RHStore temperature humidity-20
