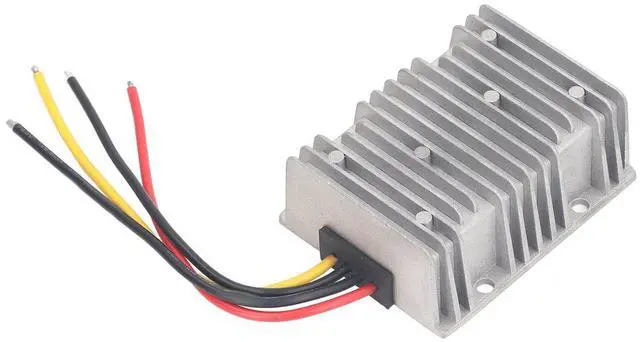

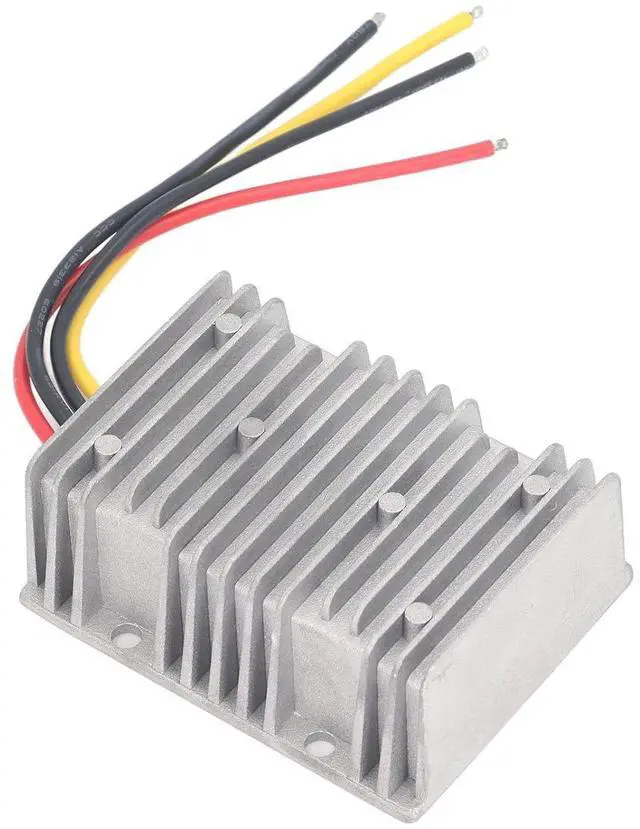

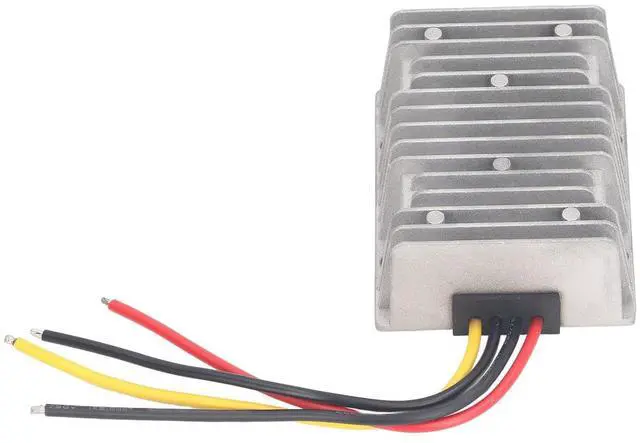

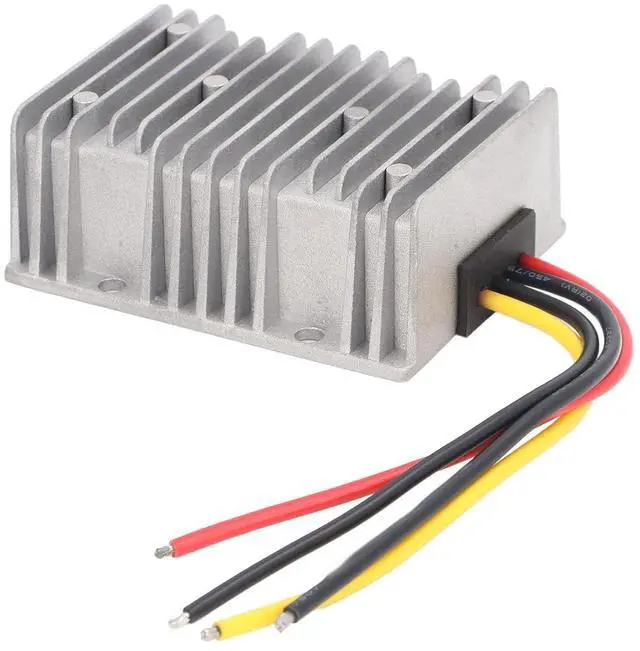

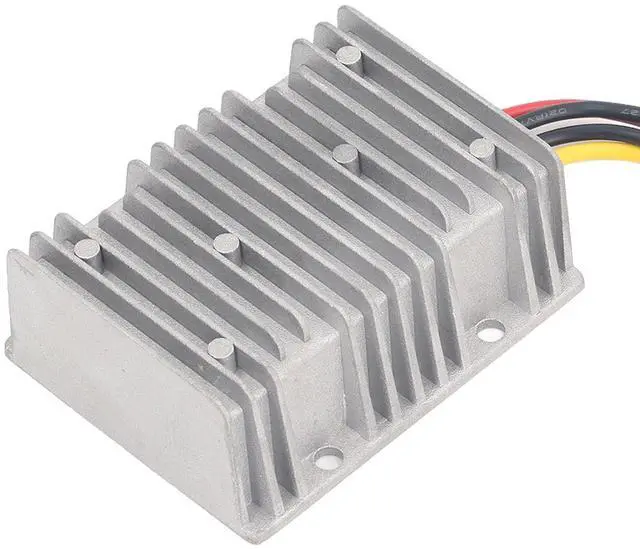

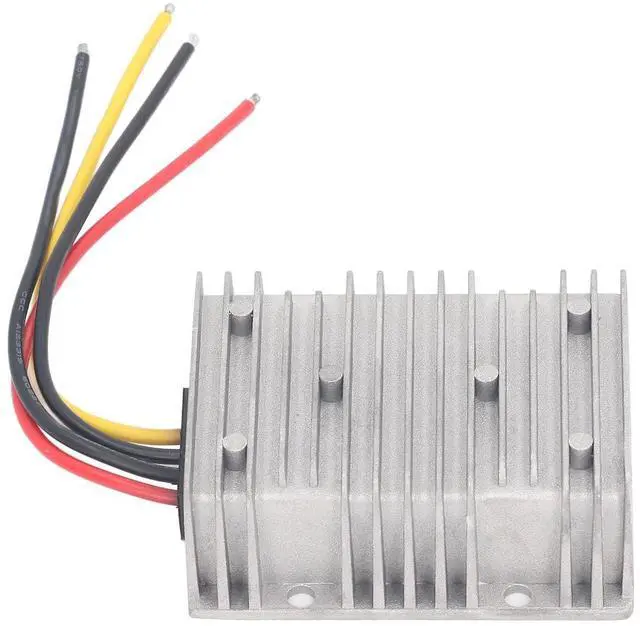

Step Up Up Boost Konverter DC 36V 15A 540W Voltage Regulator for an IP67 Stable Power Supply for The Outdoor Area

1. Simple and durable: The ascending transformer is easy to install, has high performance and a high conversion rate and offers great comfort for your life.
2. Excellent performance: The Boost transformer has excellent components, synchronous voltage control technology, very low heat development, sufficient power and stable condition
3. Under heating: The updating DC/DC converter uses several electrolytic capacitors undulating with multi -low impedance ring inductivity and inductivity of iron silicate aluminum, has a low heat development and a large full power.
4. Waterproof Alcicultor: The Boost transformer uses a completely sealed housing as a heat dissipator, waterproof IP67, blow -proof, dust proof, which is more durable
5. Several protective functions: Ascending converter with incorporated survival, subtension, overload, overheating and short -circuit protection, very reliable
6. Wide to date: voltage amplifiers are often used in vehicles, safety systems, hospital devices, telecommunications devices, electrical devices, LED light strips, engines, safety devices, etc.

Technical data:
Article type: reinforcement converter
Input voltage: 12V24V (9-30V)
Starting current: 15A
Output voltage: 36v
Output power: 540W
Operating temperature: -20 ~ 80
Water : IP67
Size (lxbxh): approx. 100 x 80 x 40 mm / 3.94 x 3.15 x 1.57 inches

Packaging list:
1 x reinforcement converter

A notice:
1. To guarantee the normal functioning of the converter, the input voltage should not be lower than the minimum or maximum entry value limited by the product. The input voltage value must be higher than the 2 V output voltage value, if it does not differentiate 2 V pressure, the output value will be lower, but the use of the converter is not affected (deteriorated).
2. The input current must be greater than or equally the power required by the output load device (for example, the of the load device requires 100 W, then the input power must be greater or 100 W). When using the converter, the current of the load device should not be greater than the maximum electricity value that the converter can support, and give the converter the greatest possible range to ensure that the converter works normally to achieve the conversion efficiency of greater value.
3. The positive and negative converter cannot be exchanged during the operation, which can cause damage to the converter. It is recommended to join an adequate security pipe when used at the end of the start.
4. The chip works in light load mode if it does not load, and the output voltage can fluctuate inside a given area.
