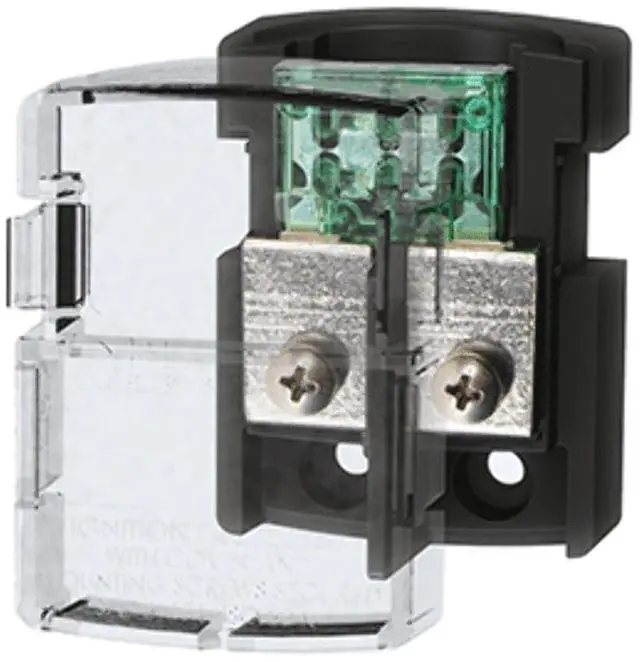

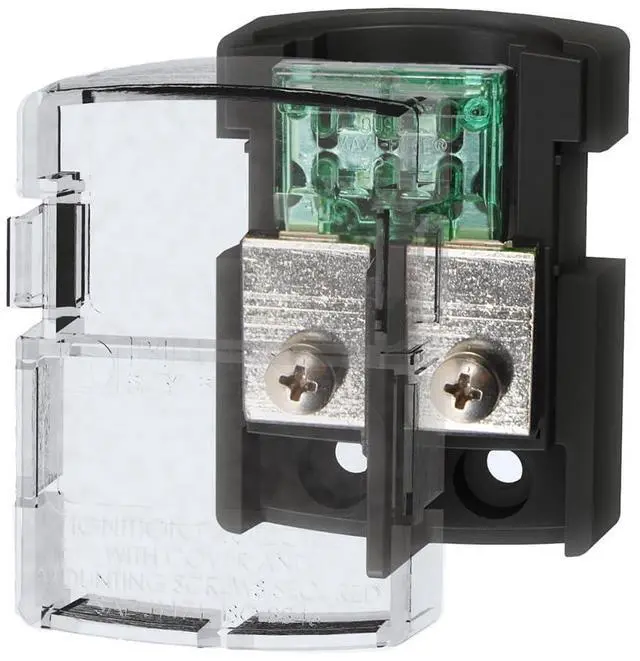

Blue Sea Systems 5006100 Maxi Fuse Block and in-Line Fuse Holder, 80 amps
- Max. amperage: 80A, max. voltage: 32V DC, #10 mounting screws, screw terminal torque: 25 in-lb, wire size: 14-4 AWG
- Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
- Cover breakouts allow wires from sides or bottom. Label recess accepts large format label
- Terminal screws compress fuse blades within blocks for low resistance connections
- Ignition Protected
- Accepts MAXI Fuses. Fuse sold separately
+
+
Overview
Specs
Reviews
Max. amperage: 80A, max. voltage: 32V DC, #10 mounting screws, screw terminal torque: 25 in-lb, wire size: 14-4 AWG
Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
Cover breakouts allow wires from sides or bottom. Label recess accepts large format label
Terminal screws compress fuse blades within blocks for low resistance connections
Ignition Protected
Accepts MAXI Fuses. Fuse sold separately
Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
Cover breakouts allow wires from sides or bottom. Label recess accepts large format label
Terminal screws compress fuse blades within blocks for low resistance connections
Ignition Protected
Accepts MAXI Fuses. Fuse sold separately
