Mini SAS Cable 12Gbps HD MiniSAS SFF-8643 To SFF-8643 SATA HD Cable for Server HDD SSD RAID Card Computer Transmission SAS Cable

Type:Dada Transfer Cable
Package:Yes
Model Number:AC4418
Products Status:STOCK
Product name:Mini SAS Cable
Connector:SFF-8643 to SFF-8643
Length:64/79/83cm
Use:for Server Backplane Cable

Mini SAS Cable 12Gbps HD MiniSAS SFF-8643 To SFF-8643 SATA HD Cable for Server HDD SSD RAID Card Computer Transmission SAS Cable
About Description:
Description:
Internal MiniSAS HD high-speed copper cable is a high-speed connection solution for SAS systems. It is suitable for storage devices and servers. It provides 4-channel data transmission with 8 pairs of differential pairs. The single-channel transmission rate supports 12Gb/s. Ultra-fine cable design facilitates bending of wiring within limited space inside the device.
Feature:
1. Meets MSA SFF-8643 standard
2. Meet SAS 2.1 and SAS 3.0 performance requirements;
3. Supports 48Gbps/s (4-channel @12Gbps) data transfer rate
4. Support passive 1M transmission distance
5. 30/32AWG high flexible cable size specification selection
6. 12Gb/s Mini-SAS HD Backplane Cable for Server
7. Provides 2x the interconnection of the Internal MINI SAS port density
8. RoHS and low smoke halogen products are available.
Specification:
1. For LUXSHARE 12Gb/s HD MiniSAS cable
2. (1*SFF-8643 double-port straight +1*SFF-8643 single-port straight) to 3*SFF-8643 single-port straight.
3. This cable consists of one SFF-8643 (double port straight) to 2*SFF-8643 (single port straight) and 1 to 1 SFF-8643 (single port straight) to SFF-8643 (single port straight).
4. The sas cable is composed of black tape and can be disassembled into one 1 to 2 cable and one 1 to 1 sas cable.
You'll receive:
1set x Mini SAS HD SFF-8643 to SFF-8643 Data Cable

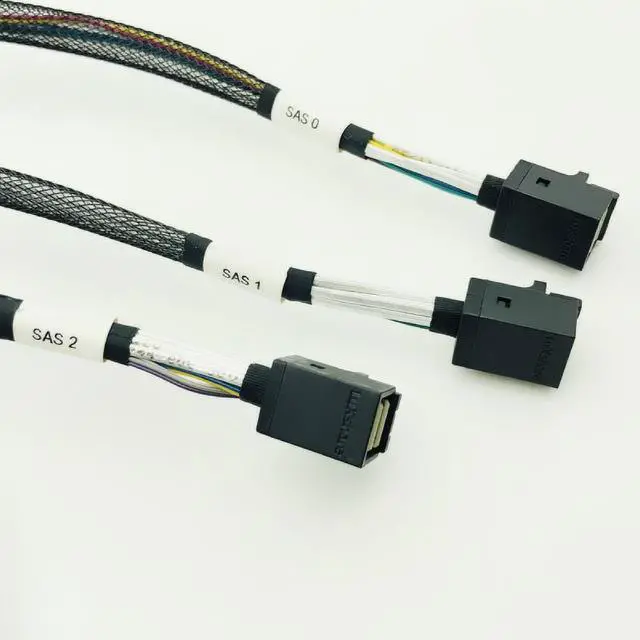

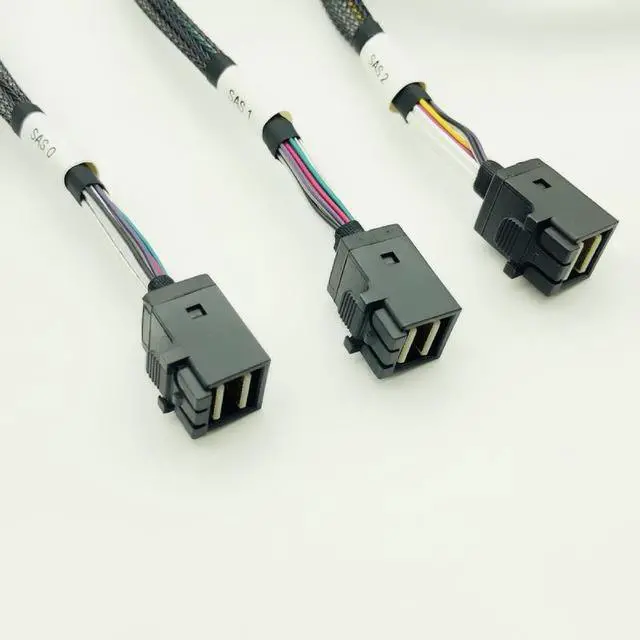

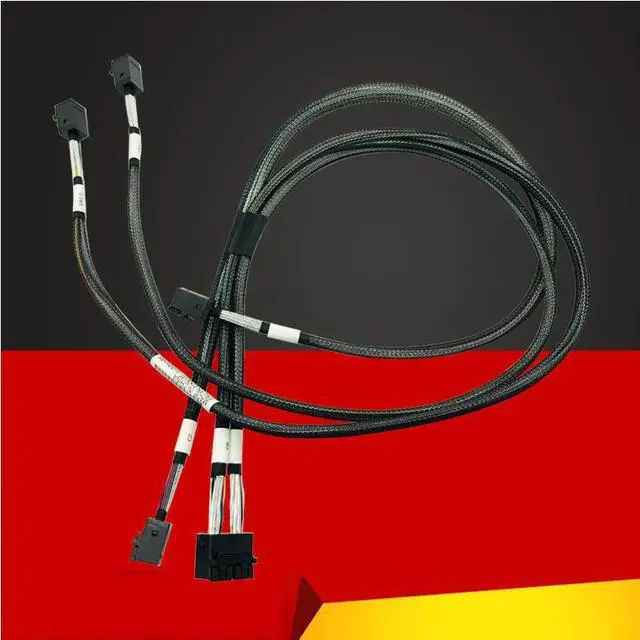

Please check pictures for more details.
