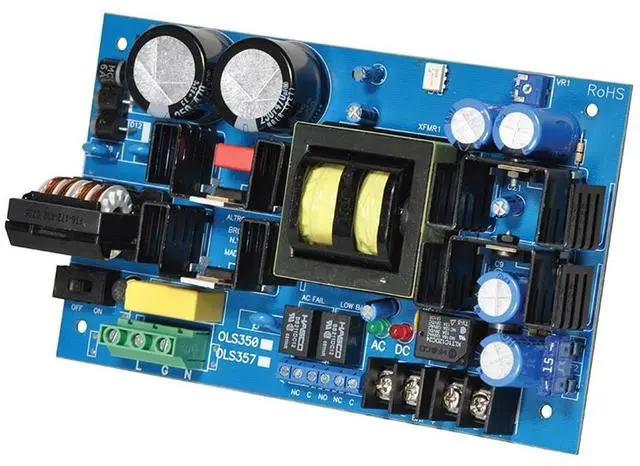

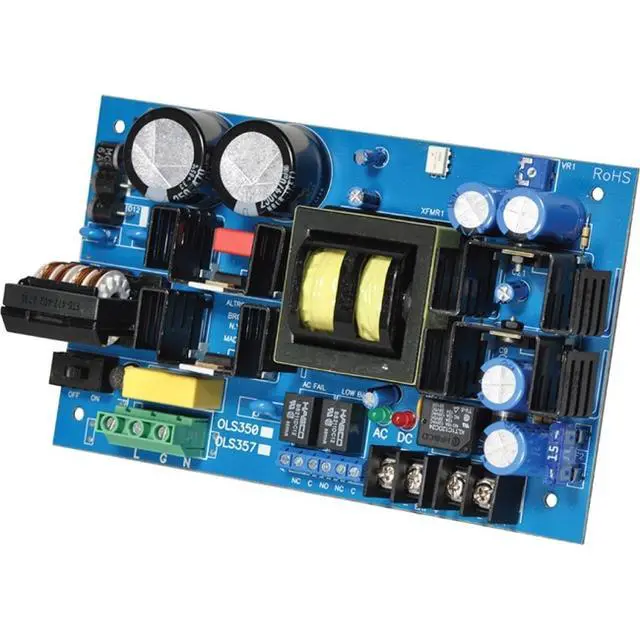

Altronix Offline Switching Power Supply Board - 24VDC @ 12A - 115VAC Board OLS350
- Input
- 115VAC, 60Hz, 5.0A.
- Output
- 24VDC output.
- 12A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current 0.7A.
- Automatic switch over to stand-by battery when AC fails.
- Battery leads included.
- (Batteries are sold separately).
- Supervision
- AC fail supervision (form "C" contacts).
- Low battery supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity: 85% +/- 5%.
- BTU/Hr. (approx.): 147 BTU/Hr.
- System AC input VA requirement: 575VA.
+
+
Overview
Specs
Reviews
POWER SUPPLY BOARD 24VDC/12A
