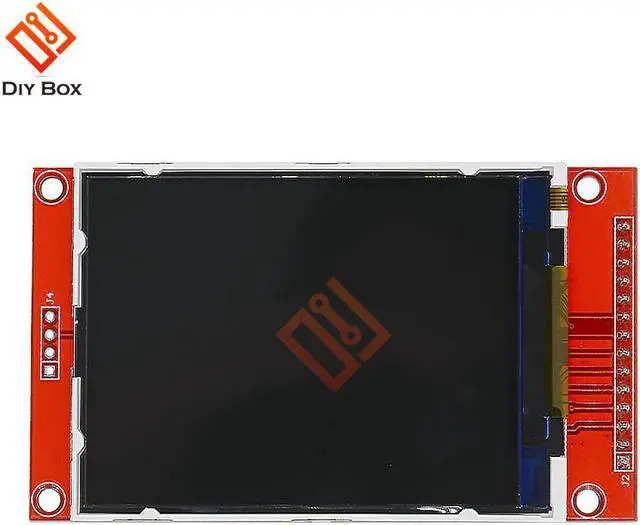

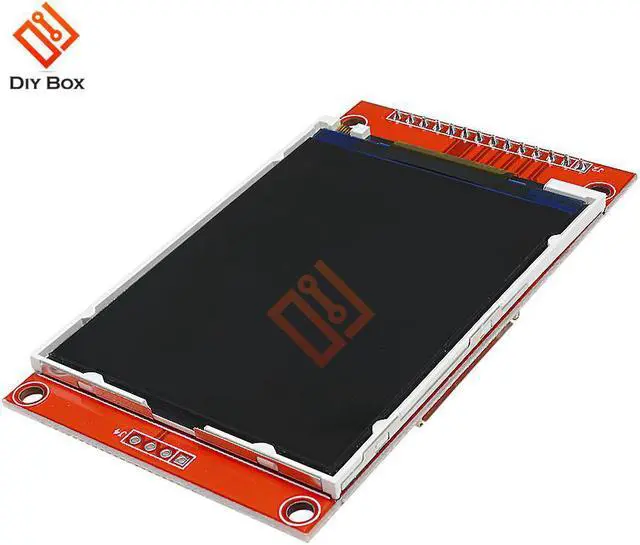

2.8 inch 240x320 SPI TFT LCD Display Module ILI9341 LCD Serial Port Module without Touch Panel 5V/3.3V for Arduino STM32
- 2.8 inch 240x320 SPI TFT LCD Display Module ILI9341 LCD Serial Port Module without Touch Panel 5V/3.3V for Arduino STM32
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:ILI9341
Feature:
This is a 2.8 inch serial SPI color display module without touch function.
Support analog SPI and hardware SPI.

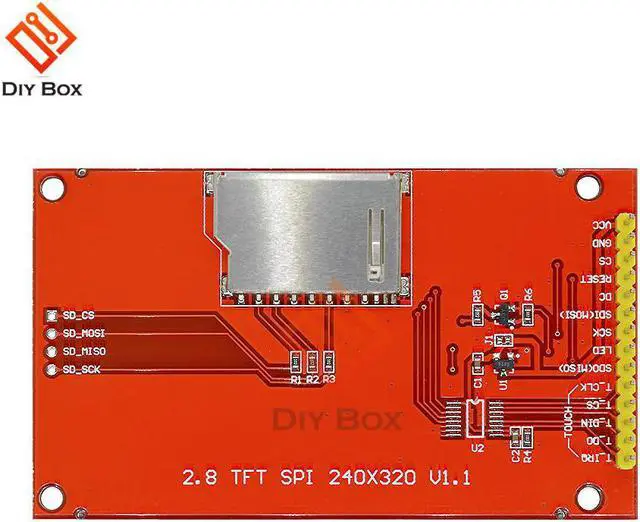

Designed with one socket for SD card.
With PCB plate (including power supply IC, for SD), compatible with 5110 interface.
5V compatible, use with 3.3V or 5V logic.
Specification:
Size: 2.8" SPI Serial
Size: 8.5 x 4.8cm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU
Note:
If you are using this LCD with a 5V device for Arduino, be aware that it doesn't work if WITHOUT level shifting to 3.3V logic. Please use level shifters from 5V to 3.3V, it will work then.
Package Included:
1 * 240X320 2.8" SPI TFT LCD Display Module
Model Number:ILI9341
Feature:
This is a 2.8 inch serial SPI color display module without touch function.
Support analog SPI and hardware SPI.
Designed with one socket for SD card.
With PCB plate (including power supply IC, for SD), compatible with 5110 interface.
5V compatible, use with 3.3V or 5V logic.
Specification:
Size: 2.8" SPI Serial
Size: 8.5 x 4.8cm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU
Note:
If you are using this LCD with a 5V device for Arduino, be aware that it doesn't work if WITHOUT level shifting to 3.3V logic. Please use level shifters from 5V to 3.3V, it will work then.
Package Included:
1 * 240X320 2.8" SPI TFT LCD Display Module
