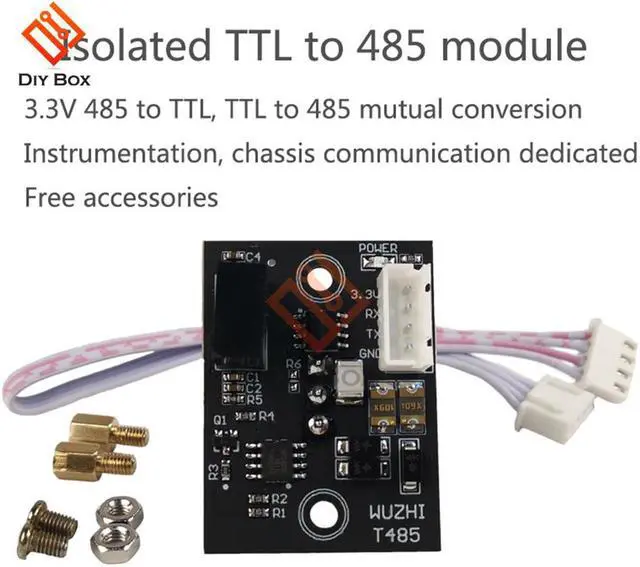

Isolated TTL To 485 Module RS485 To TTL Communication Single Chip Microcomputer Serial Port Line Converter Chassis

Origin:CN(Origin)
Model Number:Isolated TTL to 485 module rs485

Features:
1: Widely used
2: Easy to use
3: Baud rate: up to 25600bps
4: Small appearance
5: Protection: TVS transient suppression, static ESD, surge, AB signal short circuit does not burn, overcurrent and overvoltage protection
Product parameter:
1.TTL terminal power supply: 3.3V, with power indicator
2. TTL signal level: 3.3V
3. Communication protocol: pure hardware equipment, not restricted by protocol
4. Baud rate: up to 25600bps
5. Transmission distance: 1200 meters (tested at 9600bps)

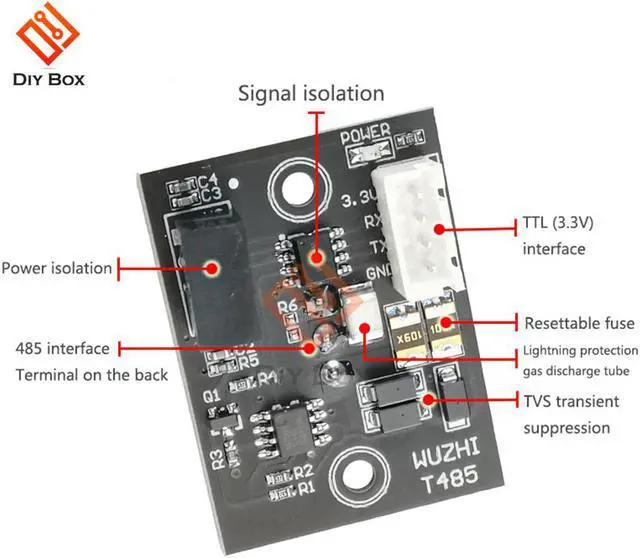

6. Isolation level: power isolation and signal isolation, isolation voltage AC3000Vrms, static ±8KV
7. Protection: TVS transient suppression, static ESD, surge, AB signal short circuit does not burn, over-current and over-voltage protection
8. Temperature range: -40-80
9.Size: 40*30mm
10.Total weight: 18g
11.Packing method: electrostatic bag
12. Accessories content: 4P cable (35cm), single-head hexagonal copper column M3*6 2 pcs, M3 nut 2 pcs, M3*5 screw 2 pcs
Why use isolated modules?
1. When the instrument or controller (TTL) is connected to the computer for communication, it is easy to produce zero potential mismatch, which will cause the signal to be unstable or the instrument accuracy to deteriorate.
2. The use environment is harsh, and the isolated module can effectively remove noise, and it is used in relatively demanding occasions.
3. Protect instruments, components and people from high voltage hazards.

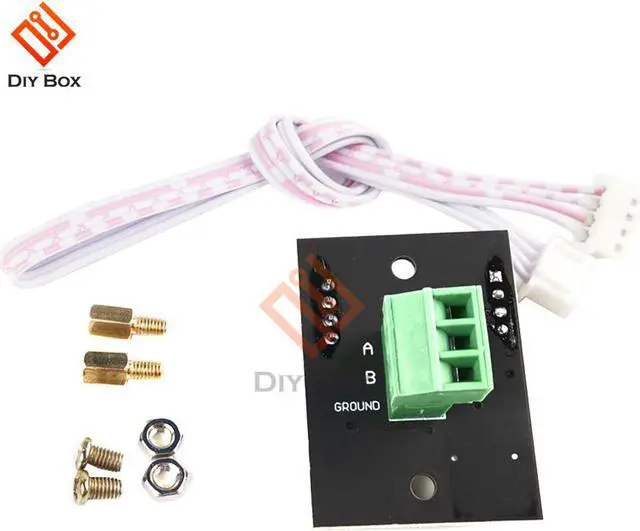

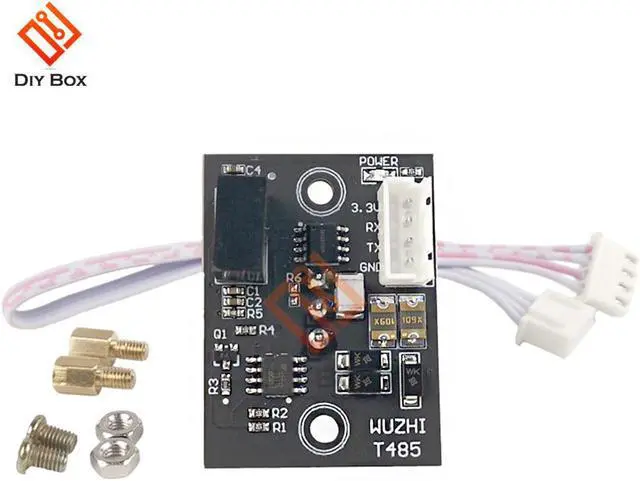

Packing included:
1*isolated TTL to 485 module
1*4P cable
2*Single head hexagonal copper column M3*6
2*M3 nut
2*M3*5 screws
