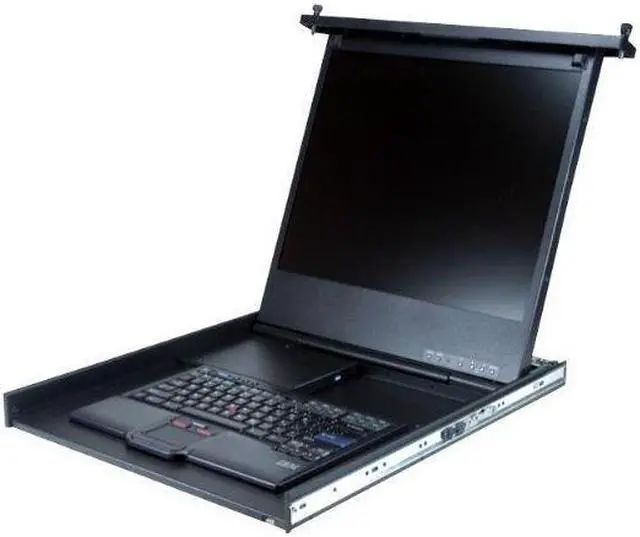

IBM 172317X 1U 17-inch Flat Panel Console Kit

Specs

Reviews

Model
Brand	IBM
Model	172317X

Details
Type	Flat Panel Console Kit
Specifications	Screen size: 17.0 inch diagonal Display Area: 338 x 270 mm Type: TFT active matrix Pixel pitch: 0.264 x 0.264 mm Contrast: 400:1 Brightness: 250 cd/m2 Viewing angle: 150 degrees to 115 degrees (H/V) Display Resolution: Optimum Mode: 1280 x 1024 at 60 Hz Maximum Mode: 1280 x 1024 at 75 Hz Connector: VGA (DB15) Power Supply: AC 100 - 240 V, 60 Hz - 50 Hz to dc 12 V/ 5.0 A Kit includes: One console unit with a 17" LCD display, AC adapter, and cable-management arm Rails and mounting brackets One 2.4 m (8 ft) IEC connector power cable Miscellaneous hardware kit (cage nuts, clip nuts, screws, cable straps) Hook-and-loop fastener strips IBM Documentation CD

Features
Features	Integrated 17-inch display supports maximum resolution of 1280X1024 @ 75 Hz Display features an anti-reflective coating that reduces surface reflectivity by approximately 25% Installable in a rack - consumes only 1U of rack space Includes rail kit and cable-management arm so the unit can close and slide back into the rack Provides easy local access and control of a server Compatible with all IBM Console Managers and Switches for control and access of multiple servers Allows installation of console switch in the same 1U space.

Additional Information
First Listed on Newegg	April 17, 2026

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
